Flat Type Transformer Connector
Flat Type Transformer Connector
conductor size dia. current rating bolt size weight part number
6 – 15.24mm 350 amps M8 0.236kg FTC-M8
Sub-Station Ball Connectors 20kA
Sub-Station Ball Connectors 20kA
material kA rating part number
Galvanized steel 20 EBCC-20KA

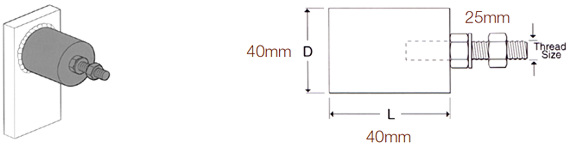

Stainless Steel Earth Boss for Steel Structures
Stainless Steel Earth Boss for Steel Structures
size weight quantity part number
40 x 40mm 0.47kg 1/pack SSB-040-040



Re-bar Earth Connector
Re-bar Earth Connector
client to stipulate: part number
Re-bar diameter  RBC-22-08
Conductor size in mm²
Conductor length
Please confirm BCEW or PVC insulated

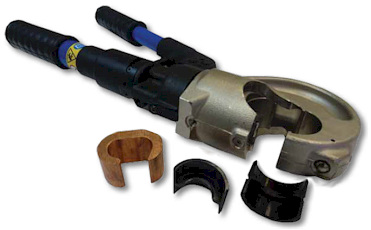

“C” Crimpits/Crimpets
“C” Crimpits/Crimpets
number A stranded to B stranded part number
YC4C4 16 – 25mm²   16 – 25mm² CPT-000-016-025
YC2C2 35mm²   16 – 35mm² CPT-035-016-035
YC26C24 50 – 70mm²   35 – 70mm² CPT-000-035-070
YC26C26 10mm dia (solid)   10mm dia CPT-000-010-000
YC28C2 95mm²   16 – 35mm² CPT-095-016-035
YC28C26 95mm²   35 – 70mm² CPT-095-035-070
YC28C28 95mm²   95mm² CPT-000-095-000
YC28C28 12mm dia (solid)   12mm dia CPT-000-012-000
YC29C29 120mm²   25 – 120mm² CPT-120-025-120
YC29C29 14mm dia (solid)   14mm dia CPT-000-014-000







• Hydraulic crimping tool available on request



• "C" Crimpet dies must be stipulated



• Part number: SEREARCRPTL

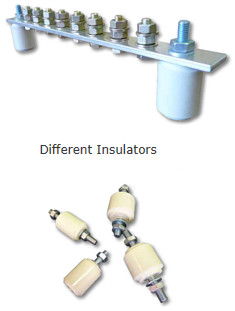

Earth Bar Termination Assembly

Earth Bar Termination Assembly







Variety of Bars

conductor
size
conductor
length
terminations no. &
hole size
hole
spacings
insulator
holes req.
part number
25 x 5mm 200mm 4 6 x M6 28mm 2 EBT-025-05-0200
25 x 6mm 200mm 4 6 x M6 28mm 2 EBT-025-06-0200
25 x 8mm 300mm 6 8 x M8 35mm 2 EBT-025-08-0300
25 x 6mm 300mm 6 8 x M8 35mm 2 EBT-025-06-0300
25 x 5mm 325mm 6 8 x M10 30mm 2 EBT-025-05-0325
25 x 5mm 350mm 6 8 x M10 38mm 2 EBT-025-05-0350
50 x 6.3mm 590mm 12 14 x M10 40mm 2 EBT-050-06-0590
50 x 6.3mm 1000mm 16 19 x M10 50mm 3 EBT-050-06-1000
50 x 6.3mm 1500mm 36 39 x M12 35mm 4 EBT-050-06-1500

• Table above is a guide only

• Other Busbar sizes available on request

• All types of Fasteners available on request

• Top hat section mounting for easy installation

• Disconnecting link to be ordered separately



Variety of Bars

Cable Crimping Lugs
Cable Crimping Lugs
cable size cable diameter stud diameter part number
16mm²  5mm  8.4mm  CLUG-016
10.5mm
13.0mm
17.0mm
25mm²  6.4mm  8.4mm  CLUG-025
10.5mm
13.0mm
17.0mm
35mm²  7.7mm  8.4mm  CLUG-035
10.5mm
13.0mm
17.0mm
50mm²  8.9mm  8.4mm  CLUG-050
10.5mm
13.0mm
14.5mm
17.0mm
21.0mm
70mm²  10.7mm  8.4mm  CLUG-070
10.5mm
13.0mm
14.5mm
17.0mm
21.0mm
95mm²  12.6mm  8.4mm  CLUG-095
10.5mm
13.0mm
14.5mm
17.0mm
21.0mm
120mm²  14.2mm  8.4mm  CLUG-120
10.5mm
13.0mm
14.5mm
17.0mm
21.0mm
150mm² 15.8mm 8.4mm  CLUG-150
10.5mm
13.0mm
14.5mm
17.0mm
21.0mm
185mm²  17.6mm  8.4mm  CLUG-185
10.5mm
13.0mm
14.5mm
17.0mm
21.0mm
240mm²  20.2mm  8.4mm  CLUG-240
10.5mm
13.0mm
14.5mm
17.0mm
21.0mm
Line Taps
Line Taps
M.O. ref size range slot width part number
6 16mm² 4 – 16mm² 6mm ELT-016
4 25mm² 4 – 25mm² 6.7mm ELT-025
2 35mm² 6 – 35mm² 8.3mm ELT-035
0 50mm² 6 – 50mm² 10.5mm ELT-050
3/0 70mm² 6 – 70mm² 11.10mm ELT-070
100 100mm² 6 – 100mm² 14.00mm ELT-100
120 120mm² 8 – 120mm² 15.00mm ELT-120
5/8 150mm² 8 – 150mm² 15.80mm ELT-150
3/4 185mm² 10 – 185mm² 19.10mm ELT-185

• Bi-metal line taps available on request
